As you've learned by now, using variables makes your programs flexible. Thanks to variables, you can conveniently store data in your programs and retrieve it by name. You can also get input from your program's user. The best thing about variables is that they can constantly change value. (They're called variables, after all, because they're variable.)
Until now, you've learned about various types of numerical variables, including integers, long integers, floating-point, and double floating-point variables. You also know about string variables, which can hold text. Now that you have a good understanding of these data types, it's time to explore one last data type-a handy data structure called an array.
Often in your programs, you'll want to store many values that are related in some way. Suppose you manage a bowling league, and you want to keep track of each player's average. One way to do this is to give each player a variable in your program, as shown in Listing 13.1. Figure 13.1 shows the applet running under Appletviewer.

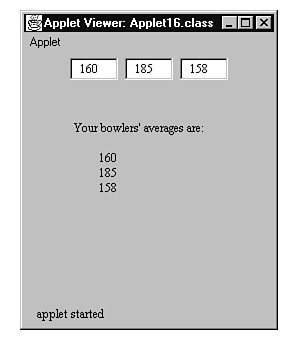

Figure 13.1 : This is Applet16 running under Appletviewer.
Listing 13.1 Applet16.java: Using Variables to Track Scores.
import java.awt.*;
import java.applet.*;
public class Applet16 extends Applet
{
TextField textField1, textField2, textField3;
int avg1, avg2, avg3;
public void init()
{
textField1 = new TextField(5);
textField2 = new TextField(5);
textField3 = new TextField(5);
add(textField1);
add(textField2);
add(textField3);
textField1.setText("0");
textField2.setText("0");
textField3.setText("0");
}
public void paint(Graphics g)
{
g.drawString("Your bowlers' averages are: ", 50, 80);
String s = textField1.getText();
g.drawString(s, 75, 110);
avg1 = Integer.parseInt(s);
s = textField2.getText();
g.drawString(s, 75, 125);
avg2 = Integer.parseInt(s);
s = textField3.getText();
g.drawString(s, 75, 140);
avg3 = Integer.parseInt(s);
}
public boolean action(Event event, Object arg)
{
repaint();
return true;
}
}
When you run Applet16, you can enter bowling scores into the three boxes at the top of the applet's display area. After you enter these averages, they're displayed on-screen as well as copied into the three variables avg1, avg2, and avg3.
Nothing too tricky going on here, right?
Now examine the listing. Remember in Chapter 10, "The while and do-while Loops," when you learned to keep an eye out for repetitive program code? How about all those calls to getText(), drawString(), and valueOf() in Listing 13.1? The only real difference between them is the specific bowler's score that's being manipulated. If you could find some way to make a loop out of this code, you could shorten the program significantly. How about a for loop that counts from 1 to 3?
But how can you use a loop when you're stuck with three different variables? The answer is an array. An array is a variable that can hold more than one value. When you first studied variables, you learned that a variable is like a box in memory that holds a single value. Now, if you take a bunch of these boxes and put them together, what do you have? You have an array. For example, to store the bowling averages for your three bowlers, you'd need an array that can hold three values. You could call this array avg. You can even create an array for a set of objects like the TextField objects Applet16 uses to get bowling scores from the user. You could call this array textField.
Now you have an array called avg that can hold three bowling averages and an array called textField that can hold three TextField objects. But how can you retrieve each individual average or object from the array? You do this by adding something called a subscript to the array's name. A subscript (also called an index) is a number that identifies the element of an array in which a value is stored. For example, to refer to the first average in your avg array, you'd write avg[0]. The subscript is the number in square brackets. In this case, you're referring to the first average in the array (array subscripts always start from zero.) To refer to the second average, you'd write avg[1]. The third average is avg[2].
If you're a little confused, look at Figure 13.2, which shows how the avg[] array might look in memory. In this case, the three bowling averages are 145, 192, and 160. The value of avg[0] is 145, the value of avg[1] is 192, and the value of avg[2] is 160.
Figure 13.2 : An array can hold many values of the same type.
Suppose that you need an array that can hold 30 floating-point numbers. First, you'd declare the array like this:
float numbers[];
Another way to declare the array is to move the square brackets to after the data type, like this:
float[] numbers;
After declaring the array, you need to create it in memory. Java lets you create arrays only using the new operator, like this:
numbers = new float[30];
The last step is to initialize the array, a task that you might perform using a for loop:
for (int x=0; x<30; ++x)
numbers[x] = (float)x;
These lines of Java source code initialize the numbers[] array to the numbers 0.0 to 29.0. Notice how the loop only goes up to 29. This is because, although there are 30 elements in the numbers[] array, those elements are indexed starting with 0, rather than 1. That is, the subscript is always one less than the number of the element you're accessing. The first element has a subscript of 0, the second a subscript of 1, the third a subscript of 2, and so on.
As you learned in a previous chapter, most numerical literals in a Java program can be replaced by numerical variables. Suppose you were to use the variable x as the subscript for the array avg[]. Then (based on the averages in Figure 13.2) if the value of x is 1, the value of avg[x] is 192. If the value of x is 3, the value of avg[x] is 160.
Now take one last, gigantic, intuitive leap (c'mon, you can do it) and think about using your subscript variable x as both the control variable in a for loop and the subscript for the avg[] and textField arrays. If you use a for loop that counts from 0 to 2, you can handle all three averages with much less code than in the original program. Listing 13.2 shows how this is done.
Listing 13.2 Applet17.java: Using Arrays.
import java.awt.*;
import java.applet.*;
public class Applet17 extends Applet
{
TextField textField[];
int avg[];
public void init()
{
textField = new TextField[3];
avg = new int[3];
for (int x=0; x<3; ++x)
{
textField[x] = new TextField(5);
add(textField[x]);
textField[x].setText("0");
}
}
public void paint(Graphics g)
{
g.drawString("Your bowlers' averages are: ", 50, 80);
for (int x=0; x<3; ++x)
{
String s = textField[x].getText();
g.drawString(s, 75, 110 + x*15);
avg[x] = Integer.parseInt(s);
}
}
public boolean action(Event event, Object arg)
{
repaint();
return true;
}
}
Tell Java that the program uses classes in the awt package.
Tell Java that the program uses classes in the applet package.
Derive the Applet17 class from Java's Applet class.
Declare TextField and int arrays.
Override the Applet class's init() method.
Create the textField and int arrays with three elements each.
Loop from 0 to 2.
Create a new TextField object and store it in the array.
Add the new TextField object to the applet.
Set the new TextField object's text.
Override the Applet class's paint() method.
Display a line of text.
Loop from 0 to 2.
Get the text from the currently indexed TextField object.
Draw the retrieve text on the applet's display area.
Convert the value and store it in the integer array.
Override the Applet object's action() method.
Force Java to redraw the applet's display area.
Tell Java everything went okay.
At the beginning of Listing 13.2, you'll see a couple of strange new variable declarations that look like this:
TextField textField[]; int avg[];
These declarations are much like other declarations you've seen, except both of the variable names end with a set of square brackets. The square brackets tell Java that you're declaring arrays rather than conventional variables.
Once you have the arrays declared, you must create them. In Applet17, this is done like this:
textField = new TextField[3]; avg = new int[3];
Here you use the new operator to create the arrays. To tell Java the type of arrays to create, you follow new with the data type and the size of the array in square brackets. In other words, the first line above creates an array that can hold three TextField objects. The second line creates an array that can hold three integers.
Once you have your arrays created, you can use a loop to reduce the amount of code needed to initialize the arrays. For example, the long way to initialize the arrays (without using a loop) would look something like Listing 13.3:
Listing 13.3 LST13_3.TXT: Initializing an Array without Looping.
textField[0] = new TextField(5);
add(textField[0]);
textField[0].setText("0");
textField[1] = new TextField(5);
add(textField[1]);
textField[1].setText("0");
textField[2] = new TextField(5);
add(textField[2]);
textField[2].setText("0");
As you learned, however, you can use a variable-specifically, a loop control variable-as the array subscript. That's what Applet17 does, which enables it to initialize the textField array as shown in Listing 13.4.
Listing 13.4 LST13_4.TXT: Initializing an Array Using a Loop.
for (int x=0; x<3; ++x)
{
textField[x] = new TextField(5);
add(textField[x]);
textField[x].setText("0");
}
The first time through the loop, x is equal to 0, so that element 0 (the first element) of the textField array is being manipulated. The next time through the loop, x is 1, so that element 1 of the array is being manipulated in the body of the loop. Finally, when x is 2, the program takes care of the third array element. As you can see, using a loop with an array can greatly simplify handling a group of related values. Imagine how many lines of source code you'd save if the array had 1,000 elements instead of only three. To accommodate the larger array, you'd only have to change x<3 to x<1000 in the first line of the for loop.
| CAUTION |
Be careful not to try accessing a nonexistent array element. For example, in Listing 13.4, if you tried to access textField[3], you'd be beyond the boundaries of the array. Java will generate an exception when this happens, which means your applet may or may not perform the way you want it to. (You'll learn more about exceptions in Chapter 30, "Exceptions.") |
The init() method isn't the only place Applet17 takes advantage of a loop to handle the program's arrays. In the paint() method, you can see the loop shown in Listing 13.5.
Listing 13.5 LST13_5.TXT: The for Loop from the paint( ) Method.
for (int x=0; x<3; ++x)
{
String s = textField[x].getText();
g.drawString(s, 75, 110 + x*15);
avg[x] = Integer.parseInt(s);
}
This loop simplifies the printing of the bowlers' scores and the loading of the avg[] array with the scores. Again, imagine how much time and space you'd save if the arrays in question had thousands of elements rather than only three. It's at times like those that you really learn to appreciate arrays.
| NOTE |
The memory locations that make up an array are called elements of the array. For example, in an array named numbers[], numbers[0] is the first element of the array, numbers[1] is the second element, and so on. The reason numbers[0] is the first element of the array is because of the number 0 inside the subscript.It is the number inside the subscript that defines which array location is being referred to. |
So far, you've looked at simple arrays that hold their data in a list. However, most programming languages also support multidimensional arrays, which are more like tables than lists. For example, take a look at Figure 13.3. The first array in the figure is a one-dimensional array, which is like the arrays you've used so far in this chapter. The next type of array in the figure is two-dimensional, which works like the typical spreadsheet type of table you're used to seeing.

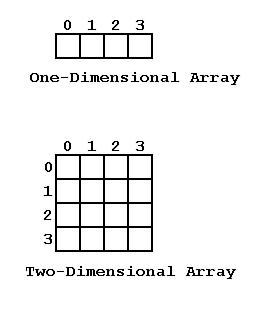

Figure 13.3 : Arrays can have more than one dimension.
Although Java doesn't support multidimensional arrays in the conventional sense, it does enable you to create arrays of arrays, which amount to the same thing. For example, to create a two-dimensional array of integers like the second array in Figure 13.3, you might use a line of code like this:
int table[][] = new int[4][4];
This line of Java code creates a table that can store 16 values-four across and four down. The first subscript selects the column and the second selects the row. To initialize such an array with values, you might use the lines shown in Listing 13.6, which would give you the array shown in Figure 13.4.
Figure 13.4 : Here's the two-dimensional array as initialized in Listing 13.6.
Listing 13.6 LST13_6.TXT: Initializing a Two-Dimensional Array.
table[0][0] = 0; table[1][0] = 1; table[2][0] = 2; table[3][0] = 3; table[0][1] = 4; table[1][1] = 5; table[2][1] = 6; table[3][1] = 7; table[0][2] = 8; table[1][2] = 9; table[2][2] = 10; table[3][2] = 11; table[0][3] = 12; table[1][3] = 13; table[2][3] = 14; table[3][3] = 15;
You refer to a value stored in a two-dimensional array by using subscripts for both the column and row in which the value you want is stored. For example, to retrieve the value 11 from the table[][] array shown in Figure 13.4, you use a line like this:
int value = table[3][2];
A quick way to initialize a two-dimensional array is to use nested for loops, as shown in Listing 13.7.
Listing 13.7 LST13_11.TXT: Using Loops to Initialize a Two-Dimensional Array.
for (int x=0; x<3; ++x)
{
for (int y=0; y<3; ++y)
{
table[x][y] = 5;
}
}
If you've never seen nested loops before, you're about to discover how handy they can be. In the case of Listing 13.7, the outside loop (the x loop) starts first, setting x to 0. But the body of the loop is another loop. So the inside loop (the y loop) starts, setting y to 0, which brings the program to the line that initializes an element of the array. Because x and y both equal 0, the array element table[0][0] gets set to 5. Then the inside loop sets y to 1, which means table[0][1] gets set to 5. When the inner loop finishes, the program branches back to the outer loop, setting x to 1. The inner loop repeats again, only this time with x equal to 1 and y going from 0 to 2. Finally, when both loops finish, the entire array is initialized.
Of course, to create the array shown in Figure 13.4 with loops, you have to be a little more tricky, as shown in Listing 13.8. Work through each loop to see how the array gets initialized.
Listing 13.8 LST13_8.TXT: Initializing the Array Elements to Different Values.
for (int x=0; x<3; ++x)
{
for (int y=0; y<3; ++y)
{
table[x][y] = x + y * 4;
}
}
Suppose that you need a table-like array that can hold 80 integers in eight columns and 10 rows. First, you'd declare the array like this:
int numbers[][];
After declaring the array, you need to create it in memory, like this:
numbers = new int[8][10];
The last step is to initialize the array, probably using nested for loops:
for (int x=0; x<8; ++x)
for (int y=0; y<10; ++y)
numbers[x][y] = 0;
These lines initialize the numbers[][] array to all zeroes.
To be sure you understand how arrays work, you'll put a two-dimensional array to work in a program called Applet18. The Applet18 applet creates and initializes a two-dimensional array with six columns and eight rows. (Try to imagine the elements of this array as the rows and columns of a spreadsheet.) The program then prints the contents of the array in the Applet's display area, so you can see that the array truly holds the values to which it was initialized. Listing 13.9 is the program, whereas Figure 13.5 shows the applet running under the Appletviewer application.

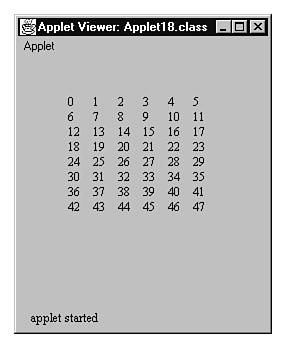

Figure 13.5 : This is Applet18 running under Appletviewer.
Listing 13.9 Applet18.java: Using a Two-Dimensional Array.
import java.awt.*;
import java.applet.*;
public class Applet18 extends Applet
{
int table[][];
public void init()
{
table = new int[6][8];
for (int x=0; x<6; ++x)
for (int y=0; y<8; ++y)
table[x][y] = x+y*6;
}
public void paint(Graphics g)
{
for (int x=0; x<6; ++x)
for (int y=0; y<8; ++y)
{
String s = String.valueOf(table[x][y]);
g.drawString(s, 50+x*25, 50+y*15);
}
}
}
Tell Java that the program uses classes in the awt package.
Tell Java that the program uses classes in the applet package.
Derive the Applet18 class from Java's Applet class.
Declare a two-dimensional integer array.
Override the Applet class's init() method.
Create an array with six columns and eight rows.
Loop from 0 to 5.
Loop from 0 to 7.
Initialize the currently indexed array element.
Override the Applet class's paint() method.
Loop from 0 to 5.
Loop from 0 to 7.
Convert the array element to a string.
Display the array element's value.
Notice in init() and paint() how the nested loops don't have curly braces like the example shown in Listing 13.8. This is because when you have only one statement in a program block, the curly braces are optional. In Applet18's init() method, the outside loop contains only one statement, which is the inner for loop. The inner for loop also contains only a single statement, which is the line that initializes the currently indexed element of the array. In the paint() method, the outer loop contains only one statement, which is the inner for loop. However, the inner loop contains two statements, so the curly braces are required in order to mark off that program block.
Arrays are a powerful data structure that enable you to store many related values using the same variable name. A one-dimensional array is a lot like a list of values that you can access by telling Java the appropriate subscript (or index). But because array subscripts always start at 0, the subscript is always one less than the number of the associated element. You can also create multidimensional arrays (or, to be more precise, arrays of arrays). A two-dimensional array is organized much like a table. To access the elements of a two-dimensional array, you need two subscripts. The first subscript identifies the column of the table and the second identifies the row.
